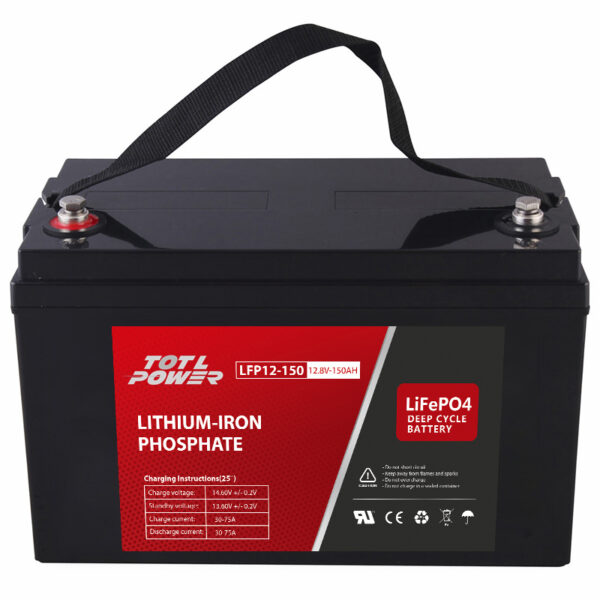

12V150Ah Prismatic Cell LiFePO4 Battery

Prismatic Cell LiFePO4 Battery  General Features & benefits.

  • Longer Cycle Life: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery
  • Lighter Weight: About 40% of the weight of a comparable lead acid battery.
  • Higher Power: Delivers twice power of lead acid battery
  • Wider Temperature Range: -20 ºC ~60 ºC
  • Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact,overcharging or short circuit situation.
  • Maintenance free
  • Internal cell balancing
  • Built-in automatic protection for over-charge, over discharge, over current and over temperature

Tag in this article:#LiFePO4 Battery #Deep Cycle Battery


Welcome importers, wholesalers and distributors require free sample

Contact Form Demo (#3)
Medical equipment application

Product Application

  • Medical equipment
  • Wind energy storage system
  • Mobility,Electric vehicles
  • Data Center
  • Transport Telecommunication
  • Sports & Recreation
  • UPS, backup power
  • Lighting Utility
  • replacement PSL-BTP-121000 RBT100LFP12-BT-US

Standards & Certifications

  • Compliance with IEC 60896 standards, EU Battery Directive
  • UL, CE Certified
  • Manufactured in ISO45001,ISO 9001 and ISO 14001 certified production facilities
  • Compliance with IEC 60896 standards,certified production facilities

LFP12-150 Prismatic Cell LiFePO4 Battery  Specifications

Rated Voltage
Nominal Capacity 150Ah
Internal Resistance(25℃)
Approx 20mΩ
Dimension Length
330±2mm ( 12.99 inches)
173±2mm (6.81 inches)
Container Height
212±2mm (8.35 inches)
Total Height
220±2mm (8.66 inches)
Approx. 13.1 Kg(28.66 lbs)
Container Material
Efficiency of Charge 100% @0.2C
Efficiency of Discharge 96 ~99% @1C
Operating Temp. Range Discharge
-20~60℃ (-4~140℉)@60±25% Relative Humidity
0~55℃ (32~131℉)@60±25% Relative Humidity
-20~45℃ (-4~113℉)@60±25% Relative Humidity
Nominal Operating Temp.Range
25±5℃ (77±5℉)
Cycle Life >2000 cycles @ 0.2C 100% DOD
Charge Voltage 14.6±0.2V 14.6±0.2V (Cut-off Voltage)
Charge Current 50A
Charge Mode
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Rated Discharge Current 50A (100A Max.)
200A(<3s) and Discharge Cut-off@10v
Self Discharge

<3% per month at 25℃

Battery Structure Diagram

LFP12-100-BT layout

Battery Charging/Discharge Curve

Different Rate Discharge Curve(25℃)
Temperature Discharge Curve(0.5C)

LFP12-100-voltage curve

State of Charge Curve(0.5C, 25℃)
Charging Characteristics(0.5C, 25℃)
LFP12-100 charging
LFP12-100 charging curve
Different DOD Discharge Cycle Life Curve(1C)
Different Temperature Self Discharge Curve
LFP12-100 cycle curve
LFP12-100 storage curve
